A Non-Resonant Multi-Output Half-Bridge Inverter for Flexible Cooking Surfaces

Rehm, Felix 1; Hiller, Marc 1
1 Elektrotechnisches Institut (ETI), Karlsruher Institut für Technologie (KIT)

Abstract (englisch):

In domestic induction heating (IH) appliances most commonly the series resonant half-bridge (HB) inverter is used. The number of required components can be further reduced by using non-resonant inverter topologies. Within this contribution, a novel non-resonant multi-output HB inverter for use in flexible cooking surfaces is presented. The proposed inverter topology is described and simulation as well as measurement results are shown. Measurement results are presented for operation with up to two inductors. The hardware prototype is equipped with gallium nitride semiconductors and operates at switching frequencies up to 400 kHz. Measurement results show that an output power of 522 W is reached for use of a single inductor. When using two inductors, a maximum output power of 828 W is reached. The presented results demonstrate the feasibility of the concept, while the efficiency of the system needs to be investigated in future work.


Postprint §
DOI: 10.5445/IR/1000163106
Veröffentlicht am 17.11.2023
Originalveröffentlichung
DOI: 10.23919/ICPE2023-ECCEAsia54778.2023.10213815

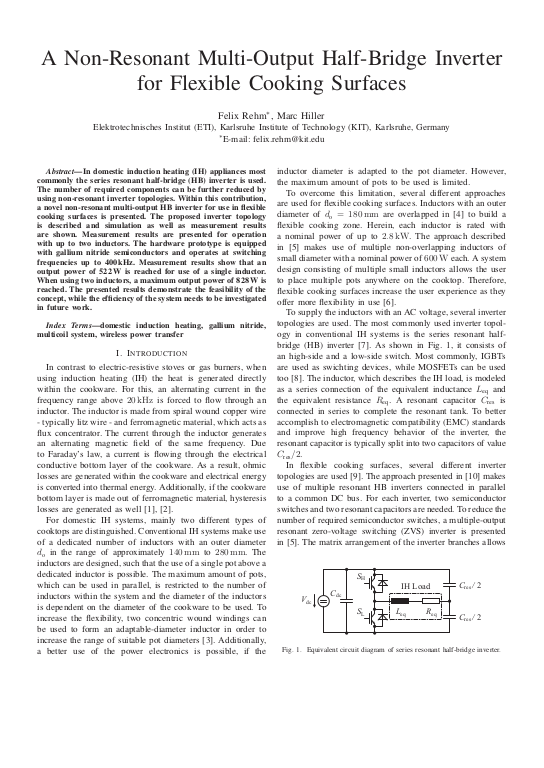

Cover der Publikation
Zugehörige Institution(en) am KIT Elektrotechnisches Institut (ETI)
Publikationstyp Proceedingsbeitrag
Publikationsjahr 2023
Sprache Englisch
Identifikator ISBN: 978-89-5708-350-5
KITopen-ID: 1000163106
Erschienen in 11th International Conference on Power Electronics and ECCE Asia (ICPE 2023 - ECCE Asia), Jeju Island, Korea, 22nd-25th May 2023
Veranstaltung 11th International Conference on Power Electronics - ECCE Asia (ICPE 2023), Jeju Island, Korea, 22.05.2023 – 25.05.2023
Verlag Institute of Electrical and Electronics Engineers (IEEE)
Seiten 2591–2597
Vorab online veröffentlicht am 22.08.2023
Schlagwörter domestic induction heating, gallium nitride, multicoil system, wireless power transfer
