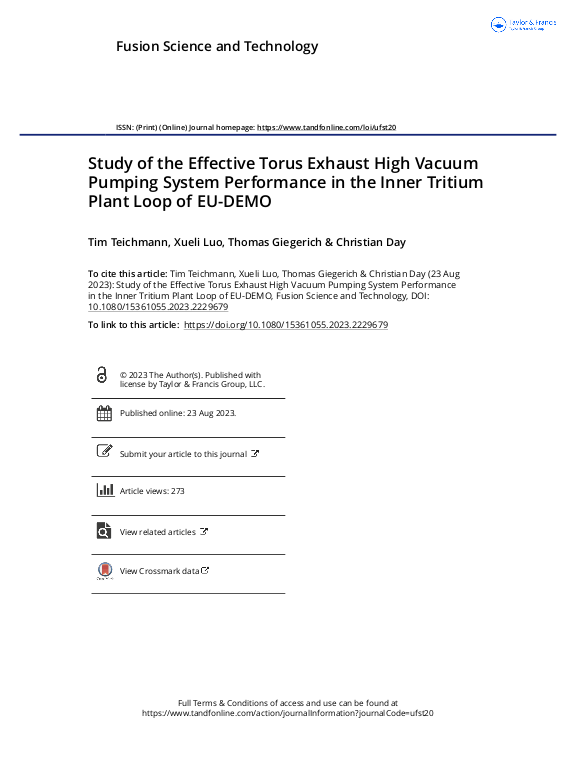

Study of the Effective Torus Exhaust High Vacuum Pumping System Performance in the Inner Tritium Plant Loop of EU-DEMO

The requirement for a reduction of the tritium inventory of the European demonstration fusion reactor (EU-DEMO) has led to the active research and development of a continuously working pumping process termed “KALPUREX.” This process foresees the direct recycling of a large fraction of the unburnt hydrogen isotopologues via superpermeation in metal foil pumps during the burn phase. The remaining exhaust gas mixture is pumped by continuously operating, mercury-driven linear diffusion pumps. Diffusion pumps are kinetic high vacuum pumps whose pumping principle is based on the momentum transfer from a supersonic mercury vapor jet to the pumped gas mixture. Like many high vacuum pumps, they feature species-dependent pumping speeds. In the present work, we develop a simplified hybrid model of the high vacuum pumping train in order to estimate the effective pumping speed of the integrated system. The results of this model and its implications on the further development of the vacuum system are discussed for the burn and dwell phases of EU-DEMO.
