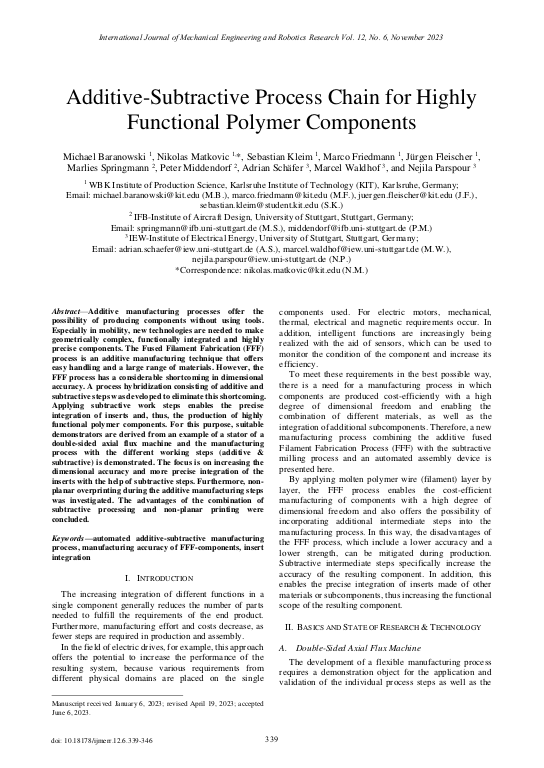

Additive-Subtractive Process Chain for Highly Functional Polymer Components

Additive manufacturing processes offer the possibility of producing components without using tools. Especially in mobility, new technologies are needed to make geometrically complex, functionally integrated and highly precise components. The fused filament fabrication (FFF) process is an additive manufacturing technique that offers easy handling and a large range of materials. However, the FFF process has a considerable shortcoming in dimensional accuracy. A process hybridization consisting of additive and subtractive steps was developed to eliminate this shortcoming. Applying subtractive work steps enables the precise integration of inserts and, thus, the production of highly functional polymer components. For this purpose, suitable demonstrators are derived from an example of a stator of a double-sided axial flux machine and the manufacturing process with the different working steps (additive & subtractive) is demonstrated. The focus is on increasing the dimensional accuracy and more precise integration of the inserts with the help of subtractive steps. Furthermore, non-planar overprinting during the additive manufacturing steps was investigated. ... mehrThe advantages of the combination of subtractive processing and non-planar printing were concluded.
