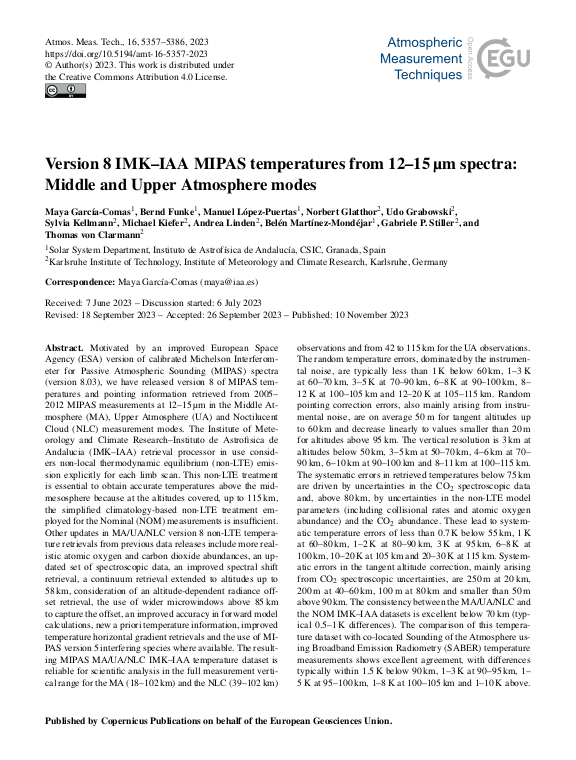

Version 8 IMK–IAA MIPAS temperatures from 12–15 µm spectra: Middle and Upper Atmosphere modes

Motivated by an improved European Space Agency (ESA) version of calibrated Michelson Interferom-
eter for Passive Atmospheric Sounding (MIPAS) spectra (version 8.03), we have released version 8 of MIPAS tem-
peratures and pointing information retrieved from 2005–2012 MIPAS measurements at 12–15 μm in the Middle At-
mosphere (MA), Upper Atmosphere (UA) and NoctilucentCloud (NLC) measurement modes. The Institute of Mete-
orology and Climate Research–Instituto de Astrofisica de Andalucia (IMK–IAA) retrieval processor in use considers non-local thermodynamic equilibrium (non-LTE) emission explicitly for each limb scan. This non-LTE treatment is essential to obtain accurate temperatures above the midmesosphere because at the altitudes covered, up to 115 km, the simplified climatology-based non-LTE treatment employed for the Nominal (NOM) measurements is insufficient. Other updates in MA/UA/NLC version 8 non-LTE temperature retrievals from previous data releases include more realistic atomic oxygen and carbon dioxide abundances, an updated set of spectroscopic data, an improved spectral shift retrieval, a continuum retrieval extended to altitudes up to 58 km, consideration of an altitude-dependent radiance offset retrieval, the use of wider microwindows above 85 km to capture the offset, an improved accuracy in forward model calculations, new a priori temperature information, improved temperature horizontal gradient retrievals and the use of MIPAS version 5 interfering species where available. ... mehrThe resulting MIPAS MA/UA/NLC IMK–IAA temperature dataset is reliable for scientific analysis in the full measurement vertical range for the MA (18–102 km) and the NLC (39–102 km) observations and from 42 to 115 km for the UA observations. The random temperature errors, dominated by the instrumental noise, are typically less than 1 K below 60 km, 1–3 K at 60–70 km, 3–5 K at 70–90 km, 6–8 K at 90–100 km, 8–12 K at 100–105 km and 12–20 K at 105–115 km. Random pointing correction errors, also mainly arising from instrumental noise, are on average 50 m for tangent altitudes up to 60 km and decrease linearly to values smaller than 20 m for altitudes above 95 km. The vertical resolution is 3 km at altitudes below 50 km, 3–5 km at 50–70 km, 4–6 km at 70–90 km, 6–10 km at 90–100 km and 8–11 km at 100–115 km. The systematic errors in retrieved temperatures below 75 km are driven by uncertainties in the CO2 spectroscopic data and, above 80 km, by uncertainties in the non-LTE model parameters (including collisional rates and atomic oxygen abundance) and the CO$-2$ abundance. These lead to systematic temperature errors of less than 0.7 K below 55 km, 1 K at 60–80 km, 1–2 K at 80–90 km, 3 K at 95 km, 6–8 K at 100 km, 10–20 K at 105 km and 20–30 K at 115 km. Systematic errors in the tangent altitude correction, mainly arising from CO$_2$ spectroscopic uncertainties, are 250 m at 20 km, 200 m at 40–60 km, 100 m at 80 km and smaller than 50 m above 90 km. The consistency between the MA/UA/NLC and the NOM IMK–IAA datasets is excellent below 70 km (typical 0.5–1 K differences). The comparison of this temperature dataset with co-located Sounding of the Atmosphere using Broadband Emission Radiometry (SABER) temperature measurements shows excellent agreement, with differences typically within 1.5 K below 90 km, 1–3 K at 90–95 km, 1–5 K at 95–100 km, 1–8 K at 100–105 km and 1–10 K above.
