Laser-induced forward transfer (LIFT) process for flexible construction of advanced 3D silicon anode designs in high-energy lithium-ion batteries

Rist, Ulrich 1; Sterzl, Yannic 1; Pfleging, Wilhelm ORCID iD icon 1; Kling, Rainer [Hrsg.]; Pfleging, Wilhelm [Hrsg.] ORCID iD icon 1; Sugioka, Koji [Hrsg.]
1 Institut für Angewandte Materialien – Angewandte Werkstoffphysik (IAM-AWP), Karlsruher Institut für Technologie (KIT)

Abstract:

The demand for optimized and affordable lithium-ion battery systems increases with the growing number of electrified vehicles. To this aim, 3D electrode architectures and new high energy density materials like silicon are in the focus of research. To implement silicon in the LIFT-process for fast prototype development, a silicon-rich paste was developed and optimized for the printing. The electrodes containing the silicon-rich paste showed a rather high specific capacity of 3029 mAh⋅g-1. To achieve an enhanced cyclability, a new electrode architecture was developed by using subtractive and additive laser processing in a process chain. For this purpose, a state-of-the-art coated graphite electrode was structured, and the cavities were subsequently partially filled with the silicon-rich paste. After reaching end-of-life, the coin cells were disassembled and analyzed using SEM and LIBS measurements regarding the failure mechanisms.


Preprint §
DOI: 10.5445/IR/1000169421
Veröffentlicht am 20.03.2024

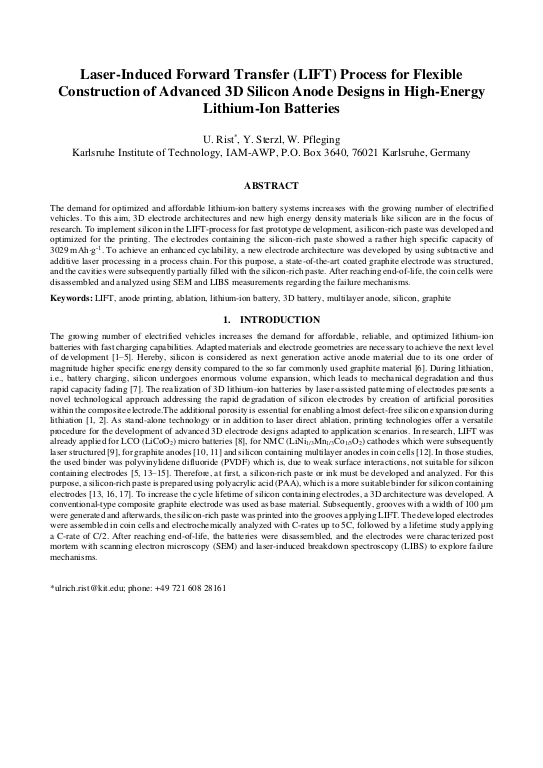

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Angewandte Materialien – Angewandte Werkstoffphysik (IAM-AWP)
Publikationstyp Proceedingsbeitrag
Publikationsdatum 12.03.2024
Sprache Englisch
Identifikator ISBN: 978-1-5106-7007-5
KITopen-ID: 1000169421
HGF-Programm 38.02.02 (POF IV, LK 01) Components and Cells
Erschienen in SPIE Photonics West LASE 2024, Laser-based Micro- and Nanoprocessing XVIII, San Francisco, CA, 27th January -1st February 2024
Veranstaltung XVIII Laser-based Micro- and Nanoprocessing (2024), San Francisco, CA, USA, 27.01.2024 – 01.02.2024
Verlag SPIE
Seiten 30
Serie Proc. of SPIE ; 12873
Projektinformation DFG, DFG EIN, PF 392/12-1
Schlagwörter LIFT, anode printing, ablation, lithium-ion battery, 3D battery, multilayer anode, silicon, graphite
Nachgewiesen in Dimensions
Scopus
Globale Ziele für nachhaltige Entwicklung Ziel 7 – Bezahlbare und saubere Energie
