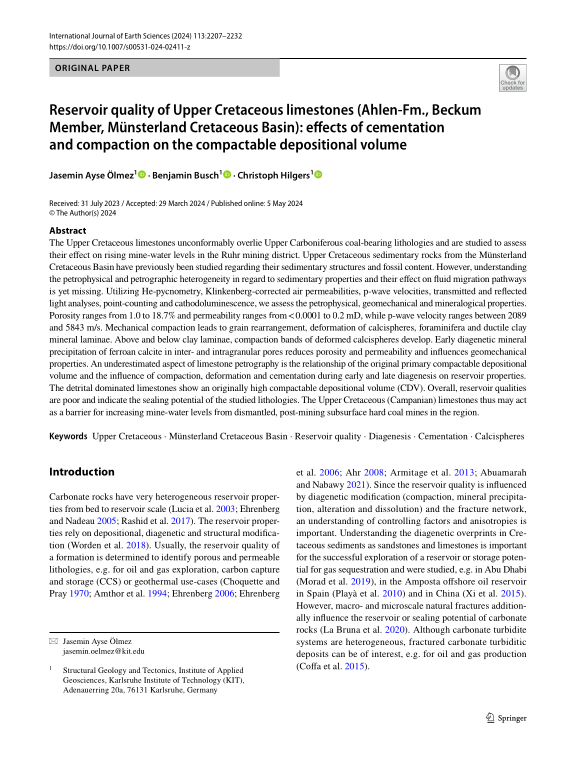

Reservoir quality of Upper Cretaceous limestones (Ahlen-Fm., Beckum Member, Münsterland Cretaceous Basin): effects of cementation and compaction on the compactable depositional volume

The Upper Cretaceous limestones unconformably overlie Upper Carboniferous coal-bearing lithologies and are studied to assess their effect on rising mine-water levels in the Ruhr mining district. Upper Cretaceous sedimentary rocks from the Münsterland Cretaceous Basin have previously been studied regarding their sedimentary structures and fossil content. However, understanding the petrophysical and petrographic heterogeneity in regard to sedimentary properties and their effect on fluid migration pathways is yet missing. Utilizing He-pycnometry, Klinkenberg-corrected air permeabilities, p-wave velocities, transmitted and reflected light analyses, point-counting and cathodoluminescence, we assess the petrophysical, geomechanical and mineralogical properties. Porosity ranges from 1.0 to 18.7% and permeability ranges from < 0.0001 to 0.2 mD, while p-wave velocity ranges between 2089 and 5843 m/s. Mechanical compaction leads to grain rearrangement, deformation of calcispheres, foraminifera and ductile clay mineral laminae. Above and below clay laminae, compaction bands of deformed calcispheres develop. Early diagenetic mineral precipitation of ferroan calcite in inter- and intragranular pores reduces porosity and permeability and influences geomechanical properties. ... mehrAn underestimated aspect of limestone petrography is the relationship of the original primary compactable depositional volume and the influence of compaction, deformation and cementation during early and late diagenesis on reservoir properties. The detrital dominated limestones show an originally high compactable depositional volume (CDV). Overall, reservoir qualities are poor and indicate the sealing potential of the studied lithologies. The Upper Cretaceous (Campanian) limestones thus may act as a barrier for increasing mine-water levels from dismantled, post-mining subsurface hard coal mines in the region.
