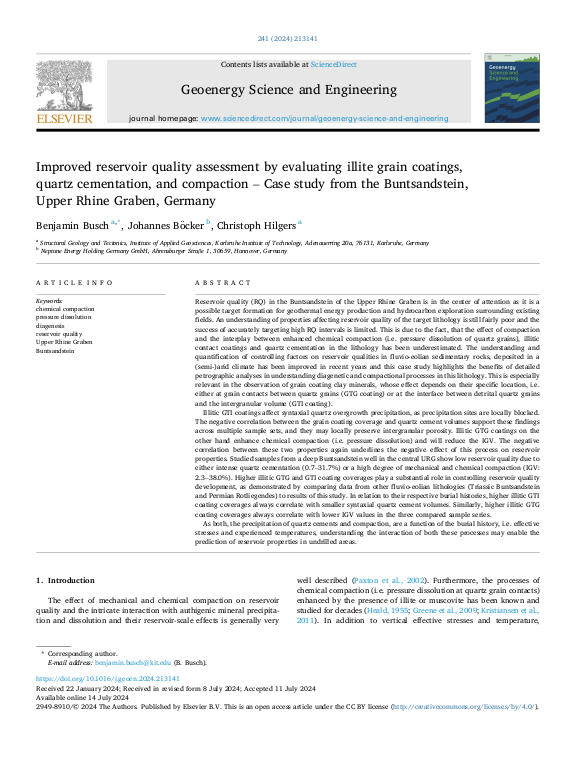

Improved reservoir quality assessment by evaluating illite grain coatings, quartz cementation, and compaction – Case study from the Buntsandstein, Upper Rhine Graben, Germany

Reservoir quality (RQ) in the Buntsandstein of the Upper Rhine Graben is in the center of attention as it is a possible target formation for geothermal energy production and hydrocarbon exploration surrounding existing fields. An understanding of properties affecting reservoir quality of the target lithology is still fairly poor and the success of accurately targeting high RQ intervals is limited. This is due to the fact, that the effect of compaction and the interplay between enhanced chemical compaction (i.e. pressure dissolution of quartz grains), illitic contact coatings and quartz cementation in the lithology has been underestimated. The understanding and quantification of controlling factors on reservoir qualities in fluvio-eolian sedimentary rocks, deposited in a (semi-)arid climate has been improved in recent years and this case study highlights the benefits of detailed petrographic analyses in understanding diagenetic and compactional processes in this lithology. This is especially relevant in the observation of grain coating clay minerals, whose effect depends on their specific location, i.e. either at grain contacts between quartz grains (GTG coating) or at the interface between detrital quartz grains and the intergranular volume (GTI coating).
... mehr

Illitic GTI coatings affect syntaxial quartz overgrowth precipitation, as precipitation sites are locally blocked. The negative correlation between the grain coating coverage and quartz cement volumes support these findings across multiple sample sets, and they may locally preserve intergranular porosity. Illitic GTG coatings on the other hand enhance chemical compaction (i.e. pressure dissolution) and will reduce the IGV. The negative correlation between these two properties again underlines the negative effect of this process on reservoir properties. Studied samples from a deep Buntsandstein well in the central URG show low reservoir quality due to either intense quartz cementation (0.7–31.7%) or a high degree of mechanical and chemical compaction (IGV: 2.3–38.0%). Higher illitic GTG and GTI coating coverages play a substantial role in controlling reservoir quality development, as demonstrated by comparing data from other fluvio-eolian lithologies (Triassic Buntsandstein and Permian Rotliegendes) to results of this study. In relation to their respective burial histories, higher illitic GTI coating coverages always correlate with smaller syntaxial quartz cement volumes. Similarly, higher illitic GTG coating coverages always correlate with lower IGV values in the three compared sample series.

As both, the precipitation of quartz cements and compaction, are a function of the burial history, i.e. effective stresses and experienced temperatures, understanding the interaction of both these processes may enable the prediction of reservoir properties in undrilled areas.
