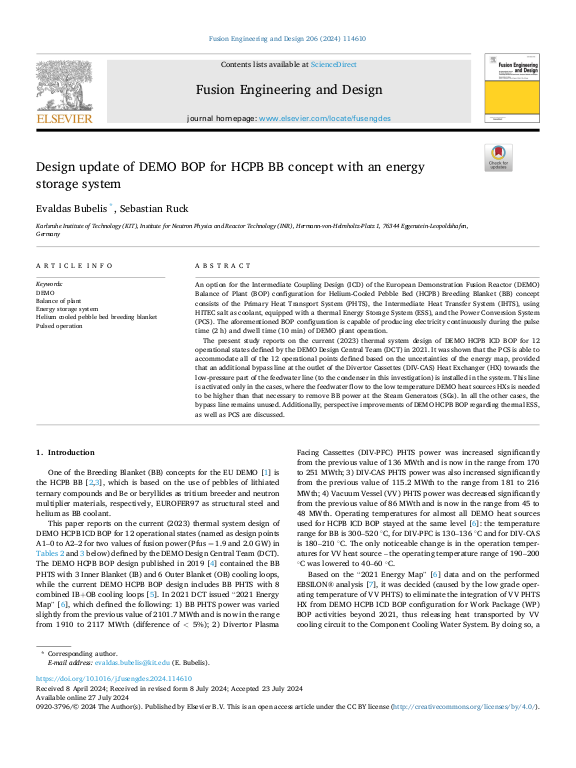

Design update of DEMO BOP for HCPB BB concept with an energy storage system

An option for the Intermediate Coupling Design (ICD) of the European Demonstration Fusion Reactor (DEMO) Balance of Plant (BOP) configuration for Helium-Cooled Pebble Bed (HCPB) Breeding Blanket (BB) concept consists of the Primary Heat Transport System (PHTS), the Intermediate Heat Transfer System (IHTS), using HITEC salt as coolant, equipped with a thermal Energy Storage System (ESS), and the Power Conversion System (PCS). The aforementioned BOP configuration is capable of producing electricity continuously during the pulse time (2 h) and dwell time (10 min) of DEMO plant operation.

The present study reports on the current (2023) thermal system design of DEMO HCPB ICD BOP for 12 operational states defined by the DEMO Design Central Team (DCT) in 2021. It was shown that the PCS is able to accommodate all of the 12 operational points defined based on the uncertainties of the energy map, provided that an additional bypass line at the outlet of the Divertor Cassettes (DIV-CAS) Heat Exchanger (HX) towards the low-pressure part of the feedwater line (to the condenser in this investigation) is installed in the system. This line is activated only in the cases, where the feedwater flow to the low temperature DEMO heat sources HXs is needed to be higher than that necessary to remove BB power at the Steam Generators (SGs). ... mehrIn all the other cases, the bypass line remains unused. Additionally, perspective improvements of DEMO HCPB BOP regarding thermal ESS, as well as PCS are discussed.
