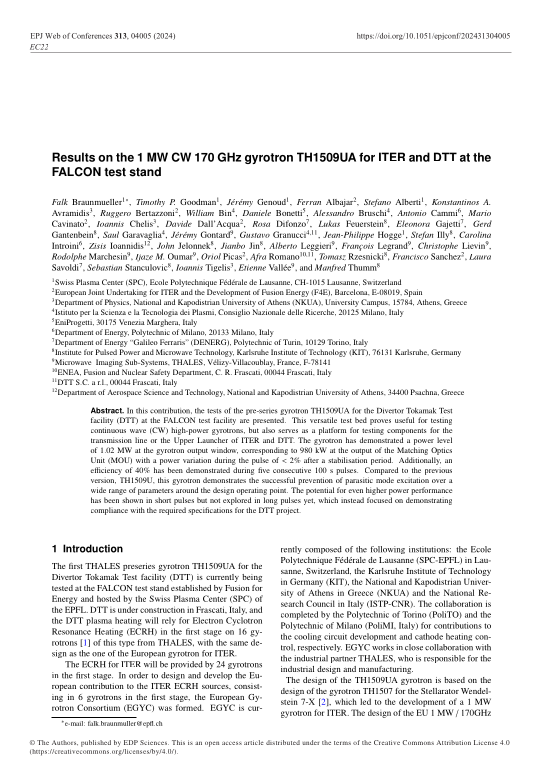

Results on the 1 MW CW 170 GHz gyrotron TH1509UA for ITER and DTT at the FALCON test stand

In this contribution, the tests of the pre-series gyrotron TH1509UA for the Divertor Tokamak Test
facility (DTT) at the FALCON test facility are presented. This versatile test bed proves useful for testing continuous wave (CW) high-power gyrotrons, but also serves as a platform for testing components for the transmission line or the Upper Launcher of ITER and DTT. The gyrotron has demonstrated a power level of 1.02 MW at the gyrotron output window, corresponding to 980 kW at the output of the Matching Optics Unit (MOU) with a power variation during the pulse of < 2% after a stabilisation period. Additionally, an efficiency of 40% has been demonstrated during five consecutive 100 s pulses. Compared to the previous version, TH1509U, this gyrotron demonstrates the successful prevention of parasitic mode excitation over a wide range of parameters around the design operating point. The potential for even higher power performance
has been shown in short pulses but not explored in long pulses yet,
