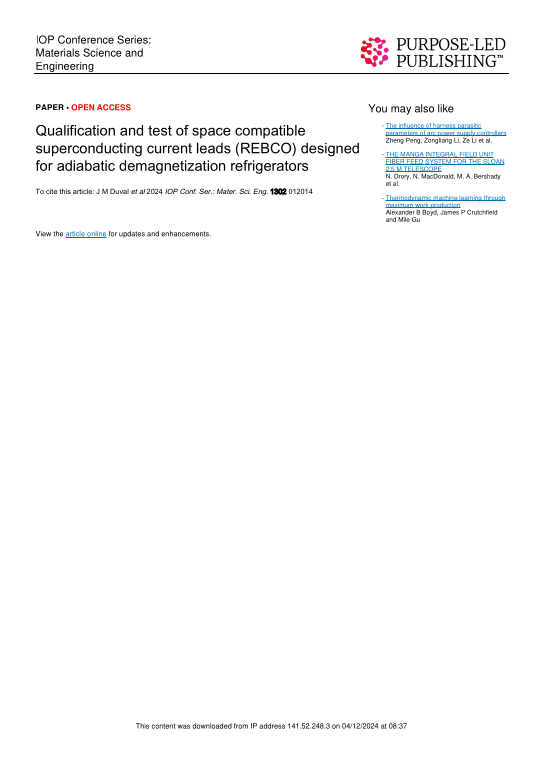

Qualification and test of space compatible superconducting current leads (REBCO) designed for adiabatic demagnetization refrigerators

Many astrophysics observations require space telescopes, either to reduce atmospheric perturbation or simply to make these detections possible (in the X-Ray spectrum for example). One of these missions, Athena, is led by the European Space Agency (ESA), with additional international contributions, dedicated to X-Ray observation. Two instruments will be part of this mission and among them, X-IFU, will use Transition Edge Sensors (TES) to detect and precisely measure the energy of X-Ray photons. These sensors require a temperature of 50 mK to reach their ambitious sensitivity goals. In space, this temperature can be reached using Adiabatic Demagnetization Refrigeration (ADR) and such a cooling system is currently being developed
for the X-IFU instrument. ADR utilizes magnetocaloric materials which, upon variation in magnetic fields, can produce a cooling effect. The magnetic field of the order of 1 T in a volume of 10s of cm3 is produced by a superconducting coil with high winding number and current limited to approximately 2 A. Even though this current is low compared to most earth-based systems, metallic current leads to link the high- and low-temperature stages would cause high thermal loads, unacceptable for the limited capacity of the cryogenic cooling chain of the spacecraft. ... mehrTherefore, a harness consisting of superconducting current leads is planned to reduce the thermal loads at the low-temperature stage. As part of an ESA contract, our team designed, built and tested such a space-compatible harness. This harness includes the electrical interfaces at both ends as well as mechanical support. Its development is capable of operating between interfaces at 80 K and 4 K. The harness is based on industrially available Rare-Earth-Barium- Copper-Oxide (REBCO) High-Temperature Superconductor (HTS) tapes. The tapes were laser- cut by our group to fulfill our specifications, Parylene coated and reinforced with Kapton laminate tape for mechanical and insulating purposes. After characterization of the single tapes, the assembled harness has been subjected to an extensive qualification sequence including thermal cycling and mechanical testing based on launch loads requirements. This paper will
summarize the technical design choices for this HTS harness. It will discuss the test results and propose some perspectives for the next iteration of the development.
