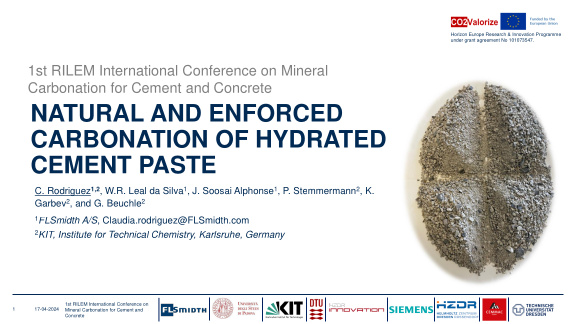

Natural and enforced carbonation of hydrated cement paste

Mineral carbonation is a technology that enables the utilization of CO2 into Recycled Concrete Fines (RCF). While this is an enforced process induced in a reactor, carbonation also occurs naturally. Our study helps distinguish between natural and enforced carbonation on hydrated cement Paste (P) by focusing on the quantification of a) P’s natural and enforced carbonation and 2) the effect of enforced carbonation on the reactivity of carbonated paste (cP) as a cement replacement by compressive strength tests (fc).
Natural carbonation is studied by exposing hydrated cement paste (P) to: N – N2 in a glove bag; E – lab controlled environment (CO2: 366±12 ppm, %RH: 26±9%, T: 23±0.3°C) for 1 and 14 days; and O – oven controlled environment (CO2: 153±17 ppm, %RH: 40±1%, T: 40±1°C) for 1 day. Next, all samples are carbonated (Wet Carb) in a reactor using a water/solid mass ratio of 10 and a gas flow rate of 2.0 L/min at 25% CO2. Then, the carbonated samples are exposed to E conditions (for 1 week) to check if additional carbonation occurs (Post Nat). Fig.1a shows the CO2 uptake – normalized to the fresh paste mass (LOI: 27.5%). While limited to the evaluated cement paste and test conditions, our results highlight that:
... mehr
• it is important to measure the CO2 content of the fresh material prior to experiments to establish a baseline;
• P’s CO2 uptake due to natural carbonation is rather low (Max 1.38%±0.01), still must be prevented.
• CO2 uptake from wet carbonation is not affected by either the starting state or natural carbonation (2 – 4%), since all tested exposure conditions yield similar final contents, i.e. 28.6%±0.6%; and
• no further natural carbonation – or a rather negligible amount – takes place after enforced carbonation;
Fig.1b shows the fc results for binder systems P, cP, and quartz (Q), where CEM I 52.5N is replaced at ratios from 5 to 15% by weight of cement. The results indicate that, up to 7 days, replacing up to 10% of cement with cP does not compromise the cement’s fc performance significantly.
