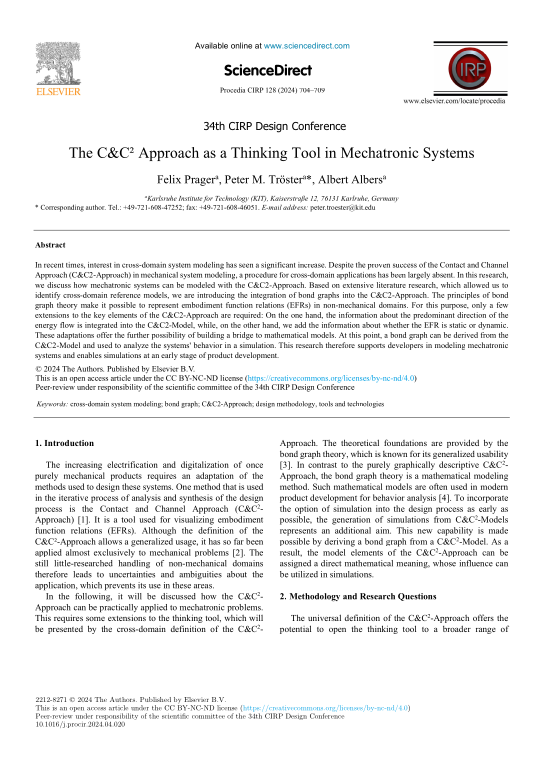

The C&C² Approach as a Thinking Tool in Mechatronic Systems

In recent times, interest in cross-domain system modeling has seen a significant increase. Despite the proven success of the Contact and Channel Approach (C&C2-Approach) in mechanical system modeling, a procedure for cross-domain applications has been largely absent. In this research, we discuss how mechatronic systems can be modeled with the C&C2-Approach. Based on extensive literature research, which allowed us to identify cross-domain reference models, we are introducing the integration of bond graphs into the C&C2-Approach. The principles of bond graph theory make it possible to represent embodiment function relations (EFRs) in non-mechanical domains. For this purpose, only a few extensions to the key elements of the C&C2-Approach are required: On the one hand, the information about the predominant direction of the energy flow is integrated into the C&C2-Model, while, on the other hand, we add the information about whether the EFR is static or dynamic. These adaptations offer the further possibility of building a bridge to mathematical models. At this point, a bond graph can be derived from the C&C2-Model and used to analyze the systems' behavior in a simulation. ... mehrThis research therefore supports developers in modeling mechatronic systems and enables simulations at an early stage of product development.
