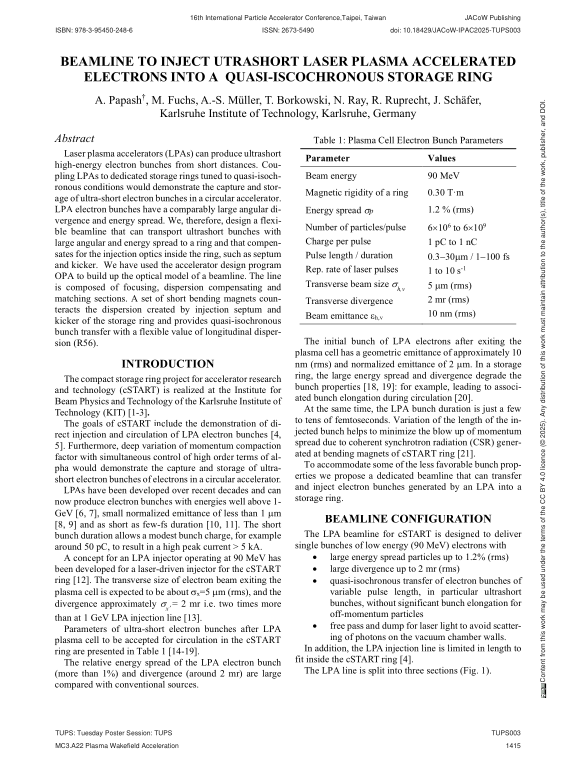

Beamline to inject laser plasma accelerated electrons to a quasi-isochronous compact storage ring

Laser plasma accelerators (LPAs) can produce high-energy electron bunches from short distances. Successfully coupling these sources with dedicated compact storage rings tuned to quasi-isochronous conditions would demonstrate the capture and storage of ultra-short electron bunches in a circular accelerator. Electron bunches generated from LPAs can have a correlated distribution in longitudinal phase space: a chirp, as well as comparably large angular divergence and energy spread. We, therefore, design a flexible beamline that can transport ultrashort bunches with large angular and energy spread to a ring. We have used the accelerator design programs OPA and MAD8 to build up optical model of a beamline. The line is composed of focusing and dispersion matching sections. A set of small angle bending magnets counteracts the dispersion created by injection septum of the storage ring and provides quasi-isochronous bunch transfer with a flexible value of longitudinal dispersion (R56).
