CH₄, CO, and H₂O spectroscopy for the sentinel-5 precursor mission: an assessment with the total carbon column observing network measurements

Galli, A.; Butz, A. 1; Scheepmaker, R. A.; Hasekamp, O.; Landgraf, J.; Tol, P.; Wunch, D.; Deutscher, N. M.; Toon, G. C.; Wennberg, P. O.; Griffith, D. W. T.; Aben, I.
1 Institut für Meteorologie und Klimaforschung (IMK), Karlsruher Institut für Technologie (KIT)


The TROPOspheric Monitoring Instrument (TROPOMI) will be part of ESA’s Sentinel-5 Precursor (S5P) satellite platform scheduled for launch in 2015. TROPOMI will monitor methane and carbon monoxide concentrations in the Earth’s atmosphere by measuring spectra of back-scattered sunlight in the short-wave infrared (SWIR). S5P will be the first satellite mission to rely uniquely on the spectral window at 4190–4340 cm−1 (2.3 μm) to retrieve CH4 and CO. In this study, we investigated if the absorption features of the three relevant molecules CH4, CO, and H2O are adequately known. To this end, we retrieved total columns of CH4, CO, and H2O from absorption spectra measured by two ground-based Fourier transform spectrometers that are part of the Total Carbon Column Observing Network (TCCON). The retrieval results from the 4190–4340 cm−1 range at the TROPOMI resolution (0.45 cm−1) were then compared to the CH4 results obtained from the 6000 cm−1 region, and the CO results obtained from the 4190–4340 cm−1 region at the higher TCCON resolution (0.02 cm−1). For TROPOMI-like settings, we were able to reproduce the CH4 columns to an accuracy of 0.3% apart from a constant bias of 1 %. ... mehr

Verlagsausgabe §
DOI: 10.5445/IR/110090673
Veröffentlicht am 24.05.2018
DOI: 10.5194/amt-5-1387-2012
Zitationen: 25
Web of Science
Zitationen: 23
Zitationen: 28

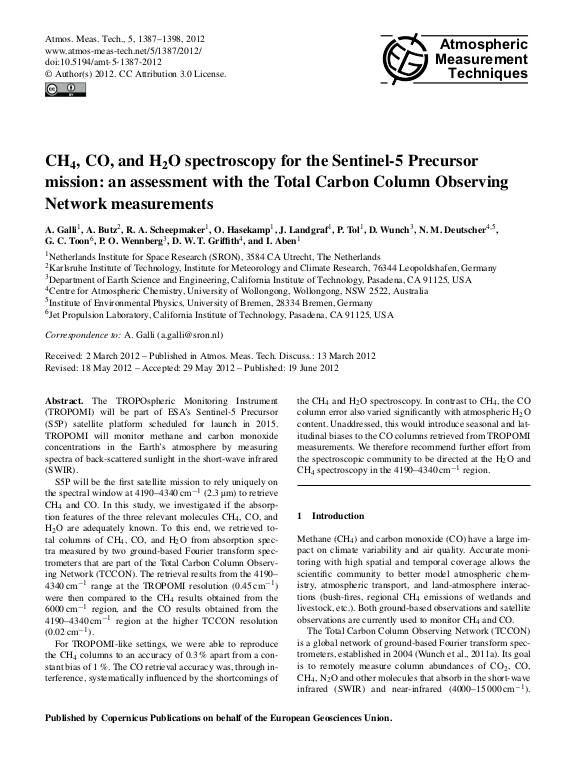

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Meteorologie und Klimaforschung – Atmosphärische Spurenstoffe und Fernerkundung (IMK-ASF)
KIT-Zentrum Klima und Umwelt (ZKU)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2012
Sprache Englisch
Identifikator ISSN: 1867-1381, 1867-8548
KITopen-ID: 110090673
HGF-Programm 12.03.01 (POF II, LK 01) Atmosphärische Variabilität und Trends
Erschienen in Atmospheric measurement techniques
Verlag Copernicus Publications
Band 5
Heft 6
Seiten 1387-1398
Nachgewiesen in Scopus
Web of Science
