A Novel Modulation Scheme for a Modular Multiphase Multilevel Converter in a Power Hardware-in-the-Loop Emulation System

Schmitt, Alexander; Gommeringer, Mario; Rollbühler, Christoph; Pomnitz, Paul; Braun, Michael

Abstract:

This paper presents a novel modulation strategy for a Modular Multiphase Multilevel Converter especially for the usage in Power Hardware-in-the-Loop Emulation Systems. The proposed modulation scheme generates the required voltage time area by means of an integrator in a quasi continuous operation mode. Therefore, the fixed modulation period is disestablished to achieve a minimum response time of the emulation converter. The switching states of the parallel half-bridges are selected by a sorting algorithm, dependent on the instantaneous branch currents, to avoid saturation in the flux compensated chokes of the converter. The performance of the modulation scheme is verified at a three phase, seven level multilevel converter, with a PWM-frequency up to 120 kHz and an output power of more than 100 kW.


Volltext §
DOI: 10.5445/IR/1000054174
Originalveröffentlichung
DOI: 10.1109/IECON.2015.7392276
Dimensions
Zitationen: 12

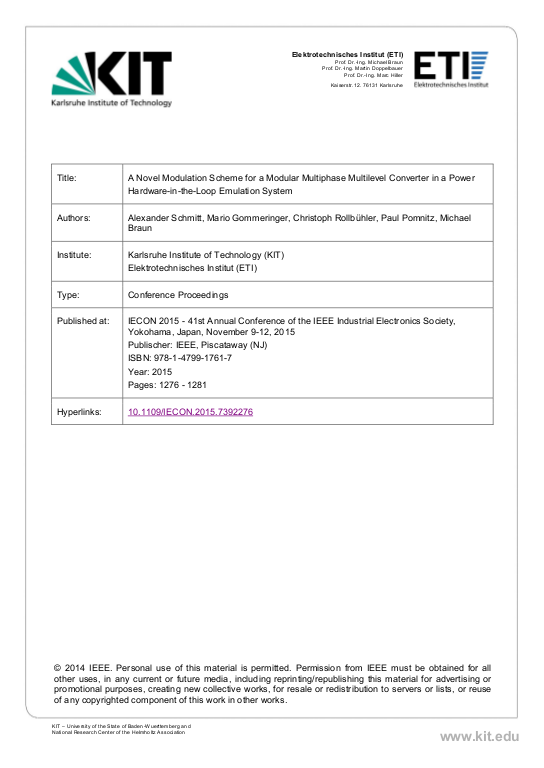

Cover der Publikation
Zugehörige Institution(en) am KIT Elektrotechnisches Institut (ETI)
Publikationstyp Proceedingsbeitrag
Publikationsjahr 2015
Sprache Englisch
Identifikator ISBN: 978-1-4799-1761-7
urn:nbn:de:swb:90-541749
KITopen-ID: 1000054174
Erschienen in Conference Proceedings of IECON 2015 - 41st Annual Conference of the IEEE Industrial Electronics Society, Yokohama, Japan, November 9-12, 2015
Verlag Institute of Electrical and Electronics Engineers (IEEE)
Seiten 1276 - 1281
