Inductive Medium Pressure UV-Source

Gehring, Tim ORCID iD icon; Denk, Fabian; Jin, Qihao ORCID iD icon; Eizaguirre, Santiago ORCID iD icon; Kling, Rainer

Abstract (englisch):

Abstract: In this paper, an efficient inductively coupled medium pressure source for ultraviolet
radiation (UV-source) is demonstrated. The lamp was operated with powers up to 3kW while the
radiation and the coldest point temperature were measured. In addition, different coil geometries
were investigated. Here a symmetrical and asymmetrical winding density were compared. Also the
operation pressures and DC to radiation efficiencies are presented. In this work, an operation pressure
of one atmosphere and an UV-efficiency (200–380 nm) of 15.5% was achieved. This is comparable to
conventional medium pressure Hg-lamp technology. The main advantage of the presented inductive
lamp is the electrodeless operation and therefore the longer service life, since an electrode failure
is eliminated.

Zugehörige Institution(en) am KIT Lichttechnisches Institut (LTI)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2020
Sprache Englisch
Identifikator KITopen-ID: 1000104531
Erschienen in Plasma
Band 3
Heft 1
Seiten 1–9
Nachgewiesen in Dimensions
OpenAlex
Globale Ziele für nachhaltige Entwicklung Ziel 7 – Bezahlbare und saubere Energie

Verlagsausgabe §
DOI: 10.5445/IR/1000104531
Veröffentlicht am 03.01.2020
Originalveröffentlichung
DOI: 10.3390/plasma3010001
Dimensions
Zitationen: 4
Seitenaufrufe: 488
seit 04.01.2020
Downloads: 232
seit 05.01.2020

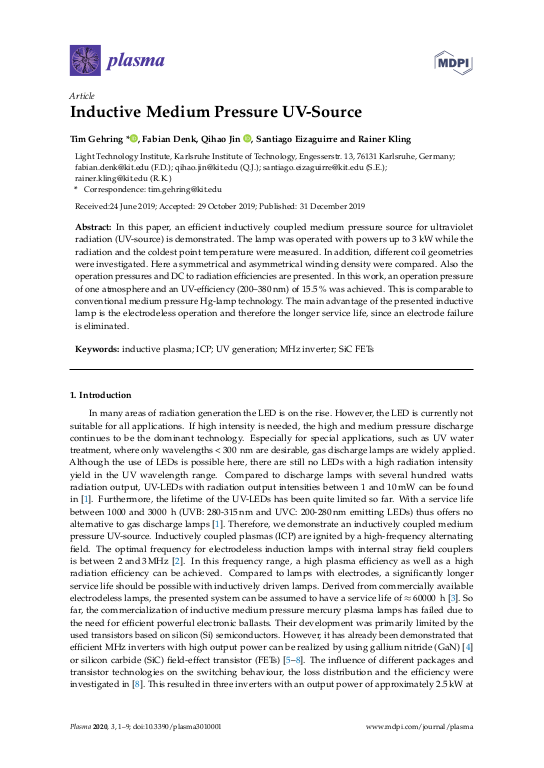

Cover der Publikation
