Two-dimensional tomographic simultaneous multispecies visualization—Part II: Reconstruction accuracy

Häber, T. ORCID iD icon 1; Suntz, R. 1; Bockhorn, H. 2,3
1 Institut für Technische Chemie und Polymerchemie (ITCP), Karlsruher Institut für Technologie (KIT)
2 Engler-Bunte-Institut (EBI), Karlsruher Institut für Technologie (KIT)
3 Institut für Kolbenmaschinen (IFKM), Karlsruher Institut für Technologie (KIT)


Recently we demonstrated the simultaneous detection of the chemiluminescence of the radicals OH* (310 nm) and CH* (430 nm), as well as the thermal radiation of soot in laminar and turbulent methane/air diffusion flames. As expected, a strong spatial and temporal coupling of OH* and CH* in laminar and moderate turbulent flames was observed. Taking advantage of this coupling, multispecies tomography enables us to quantify the reconstruction quality completely independent of any phantom studies by simply utilizing the reconstructed distribution of both species. This is especially important in turbulent flames, where it is difficult to separate measurement noise from turbulent fluctuations. It is shown that reconstruction methods based on Tikhonov regularization should be preferred over the widely used algebraic reconstruction technique (ART) and multiplicative algebraic reconstruction techniques (MART), especially for high-speed imaging or generally in the limit of low signal-to-noise ratio.

Verlagsausgabe §
DOI: 10.5445/IR/1000120385
Veröffentlicht am 30.06.2020
DOI: 10.3390/en13092368
Zitationen: 4
Web of Science
Zitationen: 2
Zitationen: 6

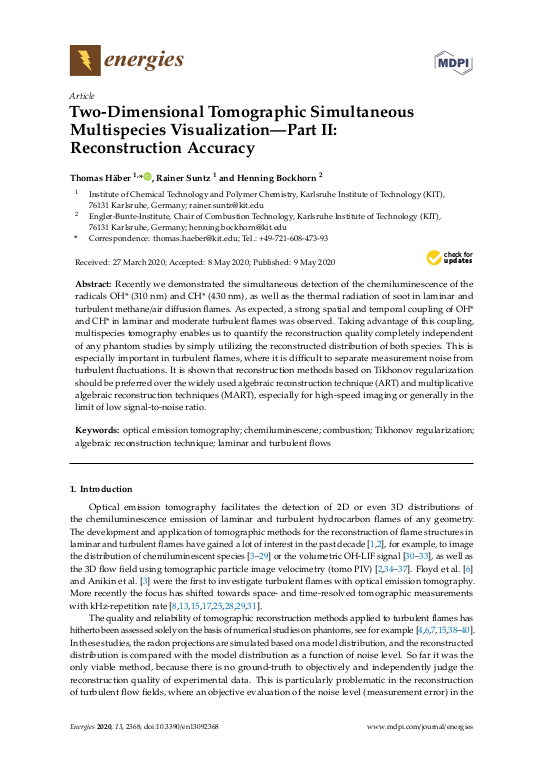

Cover der Publikation
Zugehörige Institution(en) am KIT Engler-Bunte-Institut (EBI)
Institut für Technische Chemie und Polymerchemie (ITCP)
Publikationstyp Zeitschriftenaufsatz
Publikationsjahr 2020
Sprache Englisch
Identifikator ISSN: 1996-1073
KITopen-ID: 1000120385
Erschienen in Energies
Verlag MDPI
Band 13
Heft 9
Seiten Art. Nr.: 2368
Vorab online veröffentlicht am 09.05.2020
Schlagwörter optical emission tomography, chemiluminescene, combustion, Tikhonov regularization,, algebraic reconstruction technique, laminar and turbulent flows
