Vibration analysis of moving machine tool axes based on phase information in video data

Klee, B. 1; Flohr, L. 1; Parth, M. 1; Kleinert, M. 1; Fleischer, J. 1
1 Karlsruher Institut für Technologie (KIT)


Vibrations of machine tools limit quality and productivity and therefore need to be analyzed. Video based vibration analysis using spatial phase information could in principle reduce measuring effort significantly. However, feasibility of these approaches for moving machine tool axes and relative movement between camera and object is yet to be shown. This paper investigates an approach for stabilizing linear axis movement to analyze vibration. It is shown that shaker induced vibration on a linearly moving clamping tower can be derived for low frequencies. However, influences of actual cutting processes as well as compensation of unwanted camera vibration needs further investigation.

Verlagsausgabe §
DOI: 10.5445/IR/1000123361
Veröffentlicht am 07.09.2020

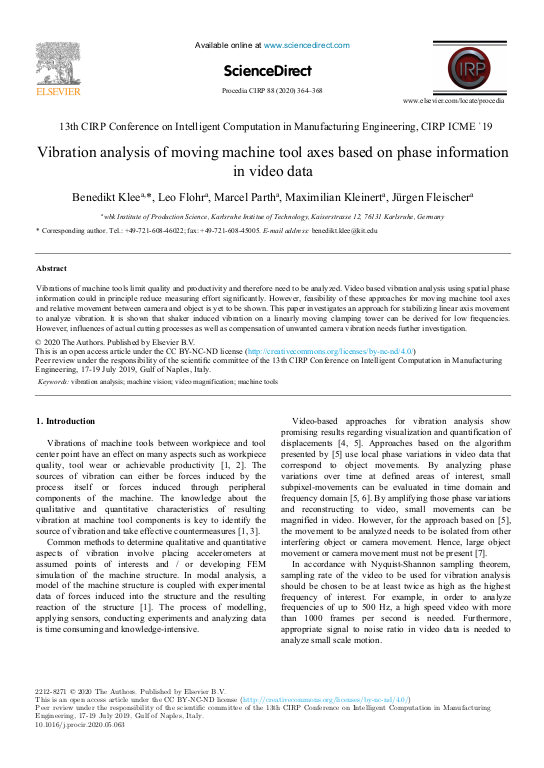

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Produktionstechnik (WBK)
Publikationstyp Proceedingsbeitrag
Publikationsjahr 2020
Sprache Englisch
Identifikator ISSN: 2212-8271
KITopen-ID: 1000123361
Erschienen in 13th CIRP Conference on Intelligent Computation in Manufacturing Engineering, 17-19 July 2019, Gulf of Naples, Italy. Ed.: R. Teti
Veranstaltung 13th Conference on Intelligent Computation in Manufacturing Engineering (CIRP ICME 2019), Neapel, Italien, 17.07.2019 – 19.07.2019
Verlag Elsevier
Seiten 364-368
Serie Procedia CIRP ; 88
Schlagwörter vibration analysis; machine vision; video magnification; machine tools
