Potential and challenges of a solid-shell element for the macroscopic forming simulation of engineering textiles

Schäfer, Bastian; Dörr, Dominik; Kärger, Luise

Abstract (englisch):
Finite element (FE) forming simulation offers the possibility of a detailed analysis of the deformation behaviour of engineering textiles during forming processes, to predict possible manufacturing effects such as wrinkling or local changes in fibre volume content. The majority of macroscopic simulations are based on conventional two-dimensional shell elements with large aspect ratios to model the membrane and bending behaviour of thin fabrics efficiently. However, a three-dimensional element approach is necessary to account for stresses and strains in thickness direction accurately, which is required for processes with a significant influence of the fabric’s compaction behaviour, e.g. wet compression moulding. Conventional linear 3D-solid elements that would be commercially available for this purpose are rarely suitable for high aspect ratio forming simulations. They are often subjected to several locking phenomena under bending deformation, which leads to a strong dependence of the element formulation on the forming behaviour [1]. Therefore, in the present work a 3D hexahedral solid-shell element, based on the initial work of Schwarze and Reese [2,3], which has shown promising results for the forming of thin isotropic materials [1], is extended for highly anisotropic materials. ... mehr


Verlagsausgabe §
DOI: 10.5445/IR/1000133732
Veröffentlicht am 10.06.2021
Originalveröffentlichung
DOI: 10.25518/esaform21.883
Dimensions
Zitationen: 2

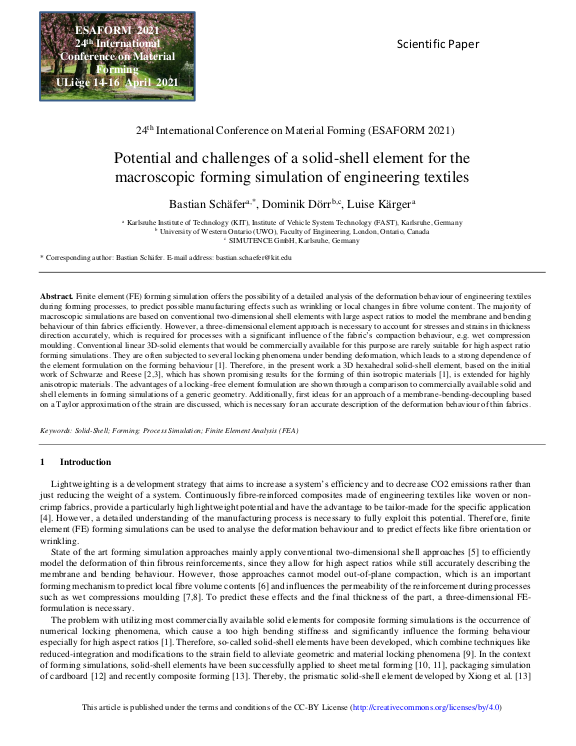

Cover der Publikation
