A novel high dynamic six phase 120 kW Power Hardware in the Loop Emulation Test Bench for emulating AC/DC Grids and Electrical Machines

Stefanski, L. ORCID iD icon; Schwendemann, R.; Bernet, D.; Braeckle, D.; Schmitz-Rode, B. ORCID iD icon; Liske, A.; Hiller, Marc

Abstract (englisch):

This paper presents a highly customizable 120kVA Power-Hardware-in-the-Loop test bench. The output stage consist of two identical Parallel Hybrid Converters each with a 17-level output voltage and an effective switching frequency of 1MHz. The Parallel Hybrid Converters can provide 3-phase AC or bipolar DC as output voltage. Thus, one 6-AC, 3-AC or DC system or two systems with 2x3-AC, 1x3-AC and 1xDC or 2xDC can be emulated.

Postprint §
DOI: 10.5445/IR/1000139434
Veröffentlicht am 14.09.2022

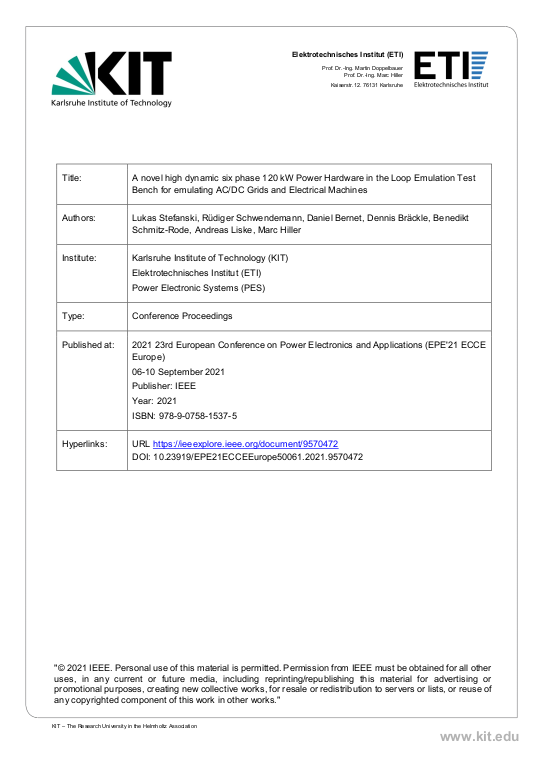

Cover der Publikation
Zugehörige Institution(en) am KIT Elektrotechnisches Institut (ETI)
Publikationstyp Proceedingsbeitrag
Publikationsdatum 06.09.2021
Sprache Englisch
Identifikator ISBN: 978-1-6654-3384-6
KITopen-ID: 1000139434
HGF-Programm 37.12.03 (POF IV, LK 01) Smart Areas and Research Platforms
Erschienen in 2021 23rd European Conference on Power Electronics and Applications (EPE'21 ECCE Europe), Ghent, Belgium, 6-10 Sept. 2021
Veranstaltung 23rd European Conference on Power Electronics and Applications (EPE`23 ECCE Europe 2021), Online, 06.09.2021 – 10.09.2021
Verlag Institute of Electrical and Electronics Engineers (IEEE)
Seiten P.1-P.10
