Terahertz sampling rates with photonic time-stretch for electron beam diagnostics

Manzhura, O.; Caselle, M. 1; Bielawski, S.; Chilingaryan, S. ORCID iD icon; Funkner, S. 2; Dritschler, T. ORCID iD icon; Kopmann, A. ORCID iD icon 1; Nasse, M. J. 2; Niehus, G.; Patil, M. M. ORCID iD icon; Steinmann, J. L. ORCID iD icon 2; Bründermann, E. ORCID iD icon 2; Roussel, E.; Szwaj, C.; Müller, A.-S. ORCID iD icon
1 Institut für Prozessdatenverarbeitung und Elektronik (IPE), Karlsruher Institut für Technologie (KIT)
2 Institut für Beschleunigerphysik und Technologie (IBPT), Karlsruher Institut für Technologie (KIT)


To understand the underlying complex beam dynamics in electron storage rings often large numbers of single-shot measurements must be acquired continuously over a long period of time with extremely high temporal resolution. Photonic time-stretch is a measurement method that is able to overcome speed limitations of conventional digitizers and enable continuous ultra-fast single-shot terahertz spectroscopy with rates of trillions of consecutive frames. In this contribution, a novel ultra-fast data sampling system based on photonic time-stretch is presented and the performance is discussed. THERESA (TeraHErtz REadout SAmpling) is a data acquisition system based on the recent ZYNQ-RFSoC family. THERESA has been developed with an analog bandwidth of up to 20 GHz and a sampling rate of up to 90 GS s−1. When combined with the photonic time-stretch setup, the system will be able to sample a THz signal with an unprecedented frame rate of 8 Tf s−1. Continuous acquisition for long observation times will open up new possibilities in the detection of rare events in accelerator physics.

Verlagsausgabe §
DOI: 10.5445/IR/1000148869
Veröffentlicht am 21.07.2022
DOI: 10.18429/JACoW-IPAC2022-MOPOPT017

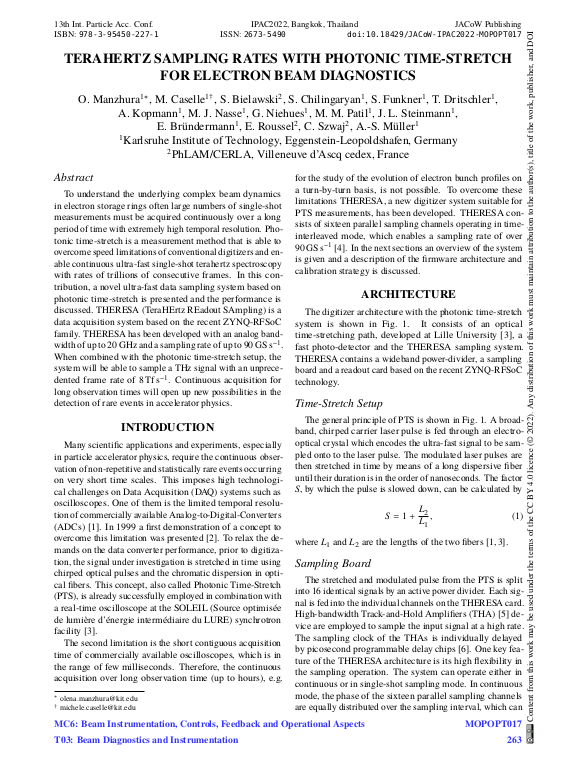

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Beschleunigerphysik und Technologie (IBPT)
Institut für Prozessdatenverarbeitung und Elektronik (IPE)
Laboratorium für Applikationen der Synchrotronstrahlung (LAS)
Publikationstyp Proceedingsbeitrag
Publikationsdatum 05.07.2022
Sprache Englisch
Identifikator ISBN: 978-3-95450-227-1
KITopen-ID: 1000148869
HGF-Programm 54.12.03 (POF IV, LK 01) Science Systems
Weitere HGF-Programme 54.11.11 (POF IV, LK 01) Accelerator Operation, Research and Development
Erschienen in 13th International Particle Accelerator Conference : June 12-17, 2022, Impact Forum, Muangthong Thani, Bangkok, Thailand : conference proceedings. Ed.: T. Chanwattana
Veranstaltung 13th International Particle Accelerator Conference (IPAC 2022), Bangkok, Thailand, 12.06.2022 – 17.06.2022
Verlag JACoW Publishing
Seiten 263-266
