Application of a Tensor Interpolation Method on the Determination of Fiber Orientation Tensors From Computed Tomography Images

Blarr, Juliane ORCID iD icon 1; Kresin, Noah 1; Krauß, Constantin 2; Weidenmann, Kay A.; Liebig, Wilfried V. ORCID iD icon 1; Elsner, Peter 1
1 Institut für Angewandte Materialien – Werkstoffkunde (IAM-WK), Karlsruher Institut für Technologie (KIT)
2 Institut für Fahrzeugsystemtechnik (FAST), Karlsruher Institut für Technologie (KIT)

Abstract:

When investigating the mechanical behavior of fiber-reinforced polymers, fiber orientation plays a decisive role concerning anisotropy. Fiber orientation distributions are typically measured in the form of fiber orientation tensors. In order to measure orientation tensors, computed tomography scans and consecutive image processing methods have become one of the leading non-destructive testing methods. The conflict between scan resolution and sample size limits the volume that can be scanned. To obtain the fiber orientation behavior across an entire plate, a direct interpolation of orientation tensors computed from CT scans of smaller volumes at selected coordinates of the plate is implemented. Rather than a component-based interpolation, the authors chose a decomposition and reassembly method interpolating shape and orientation of the tensors separately. While this approach has been implemented and used for e.g. diffusion tensors in medical imaging, the authors consider the application to sparse but measured CT-based data to be a novelty.


Verlagsausgabe §
DOI: 10.5445/IR/1000155486
Veröffentlicht am 03.02.2023
Originalveröffentlichung
DOI: 10.5075/epfl-298799_978-2-9701614-0-0

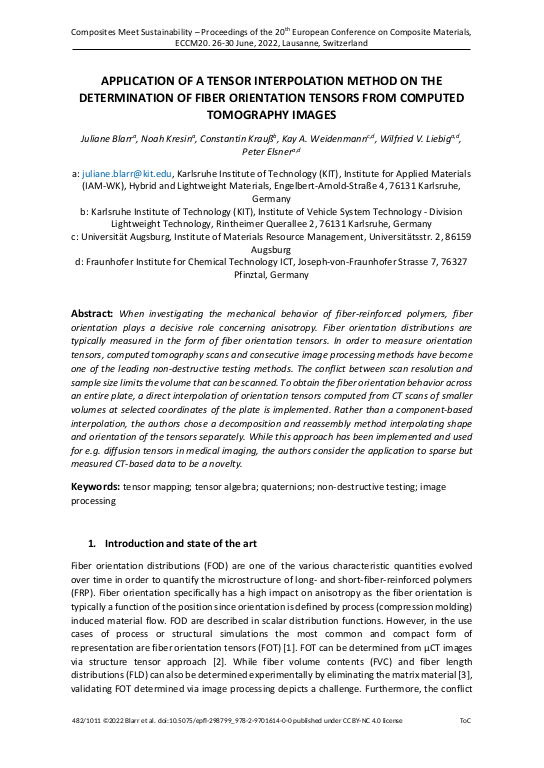

Cover der Publikation
Zugehörige Institution(en) am KIT Institut für Fahrzeugsystemtechnik (FAST)
Institut für Angewandte Materialien – Werkstoffkunde (IAM-WK)
Publikationstyp Proceedingsbeitrag
Publikationsdatum 22.12.2022
Sprache Englisch
Identifikator ISBN: 978-2-9701614-0-0
KITopen-ID: 1000155486
Erschienen in Proceedings of the 20th European Conference on Composite Materials - Composites Meet Sustainability. Vol.: 1-6. Ed.: A. Vassilopoulos
Veranstaltung 20th European Conference on Composite Materials (ECCM 2022), Lausanne, Schweiz, 26.06.2022 – 30.06.2022
Seiten 482 - 489
Schlagwörter tensor mapping, tensor algebra, quaternions, non-destructive testing, image processing
