3D modeling and measurement of HTS tape stacks in linear superconducting magnetic bearings

Ghabeli, Asef ORCID iD icon 1; Fuchs, Günter; Hänisch, Jens ORCID iD icon 1; Zhou, Pengbo 1; de Haas, Oliver; Morandi, Antonio; Grilli, Francesco 1
1 Institut für Technische Physik (ITEP), Karlsruher Institut für Technologie (KIT)

Abstract:

Superconducting magnetic bearings (SMBs) are among the possible new technologies to be incorporated in maglev vehicles. Stacks of high-temperature superconductor (HTS) tapes can be used as an alternative to bulks, because stacks offer better mechanical properties, a better thermal conductivity and a simpler production process. Numerical modeling has been employed as a cost-effective, fast and reliable tool for improving the performance of SMBs. Several scenarios can be simulated with fast and relatively simple 2D models; however, in some cases using 3D models is inevitable. In this study, we use a full 3D model to solve the problem of magnetization of the tape stacks and obtaining the hysteresis force loop between a permanent magnet and the tape stacks. For this purpose, we employ an energy minimization-based method called minimum electromagnetic entropy production in 3D, combined with a homogenization technique and the dependence of the HTS tape as input. The modeling results agree very well with the experiment both in the zero-field cooled and field-cooled conditions. The presented approach offers significant computational advantages, delivering faster and more efficient results compared to previously proposed 3D methods.

Zugehörige Institution(en) am KIT Institut für Technische Physik (ITEP)
Publikationstyp Zeitschriftenaufsatz
Publikationsdatum 01.06.2024
Sprache Englisch
Identifikator ISSN: 0953-2048, 1361-6668
KITopen-ID: 1000170709
HGF-Programm 38.05.03 (POF IV, LK 01) High Temperature Superconductivity
Erschienen in Superconductor Science and Technology
Verlag Institute of Physics Publishing Ltd (IOP Publishing Ltd)
Band 37
Heft 6
Seiten Art.-Nr.: 065003
Vorab online veröffentlicht am 30.04.2024
Nachgewiesen in Web of Science
Scopus
Dimensions

Verlagsausgabe §
DOI: 10.5445/IR/1000170709
Veröffentlicht am 21.05.2024
Originalveröffentlichung
DOI: 10.1088/1361-6668/ad3c9a
Scopus
Zitationen: 1
Web of Science
Zitationen: 1
Dimensions
Zitationen: 2
Seitenaufrufe: 38
seit 21.05.2024
Downloads: 14
seit 23.06.2024

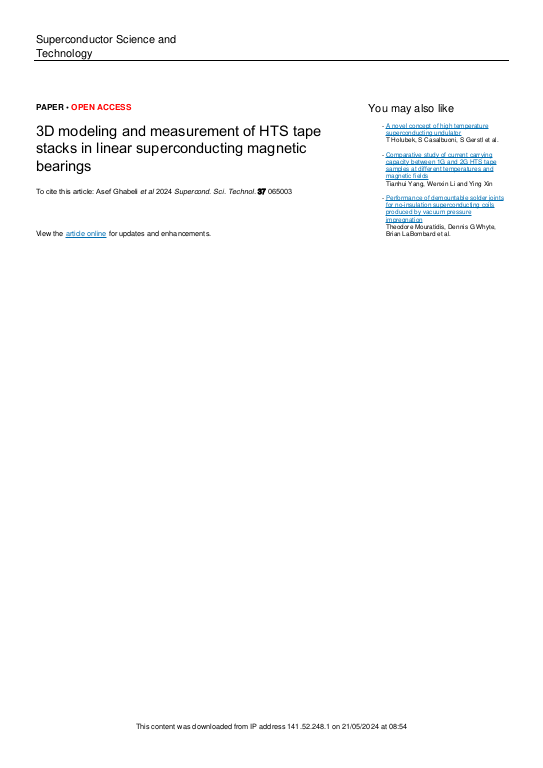

Cover der Publikation
