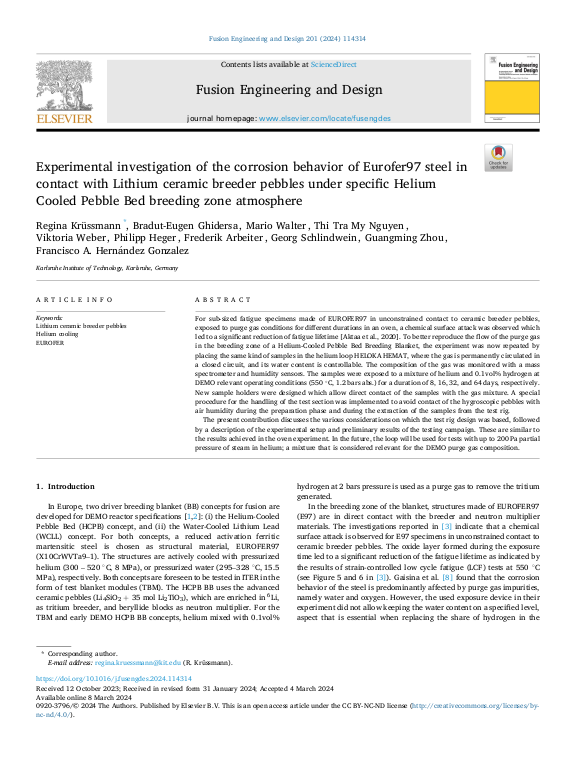

Experimental investigation of the corrosion behavior of Eurofer97 steel in contact with Lithium ceramic breeder pebbles under specific Helium Cooled Pebble Bed breeding zone atmosphere

For sub-sized fatigue specimens made of EUROFER97 in unconstrained contact to ceramic breeder pebbles, exposed to purge gas conditions for different durations in an oven, a chemical surface attack was observed which led to a significant reduction of fatigue lifetime [Aktaa et al., 2020]. To better reproduce the flow of the purge gas in the breeding zone of a Helium-Cooled Pebble Bed Breeding Blanket, the experiment was now repeated by placing the same kind of samples in the helium loop HELOKA HEMAT, where the gas is permanently circulated in a closed circuit, and its water content is controllable. The composition of the gas was monitored with a mass spectrometer and humidity sensors. The samples were exposed to a mixture of helium and 0.1vol% hydrogen at DEMO relevant operating conditions (550 °C, 1.2 bars abs.) for a duration of 8, 16, 32, and 64 days, respectively. New sample holders were designed which allow direct contact of the samples with the gas mixture. A special procedure for the handling of the test section was implemented to avoid contact of the hygroscopic pebbles with air humidity during the preparation phase and during the extraction of the samples from the test rig.
... mehr

The present contribution discusses the various considerations on which the test rig design was based, followed by a description of the experimental setup and preliminary results of the testing campaign. These are similar to the results achieved in the oven experiment. In the future, the loop will be used for tests with up to 200 Pa partial pressure of steam in helium; a mixture that is considered relevant for the DEMO purge gas composition.
